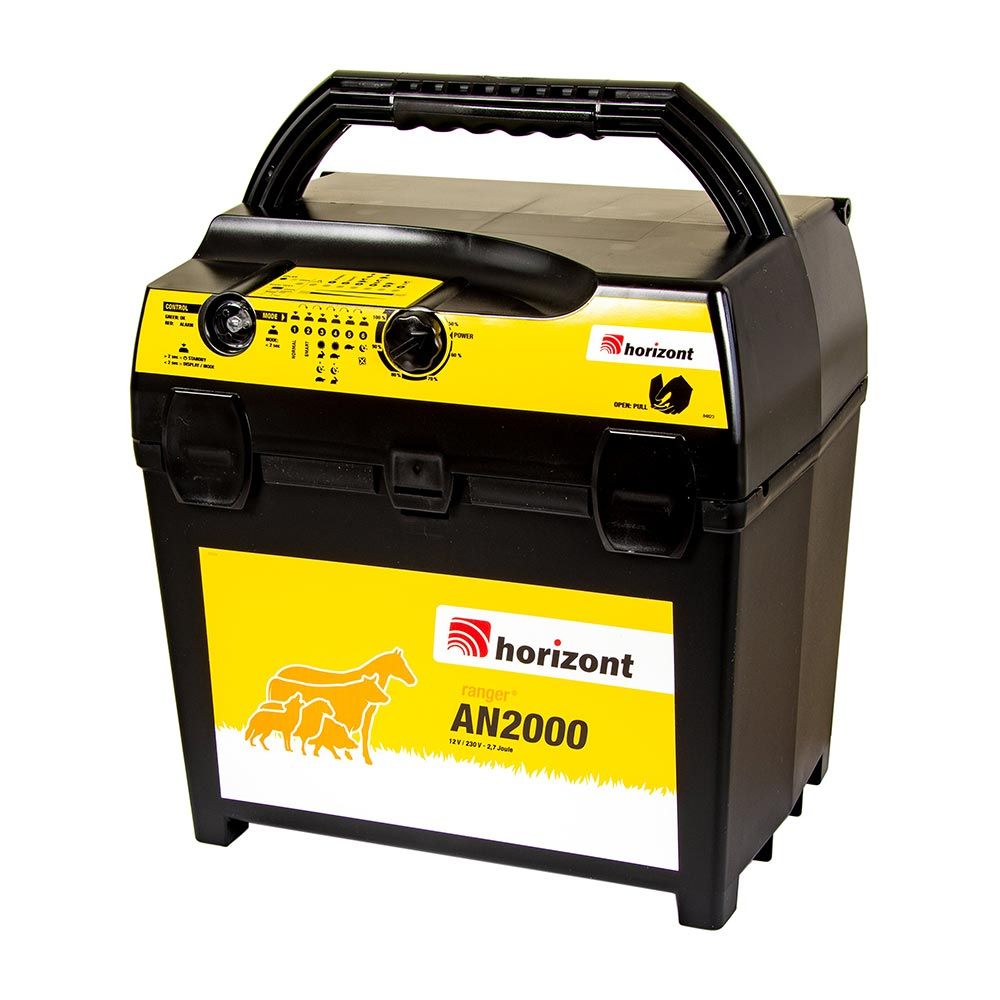

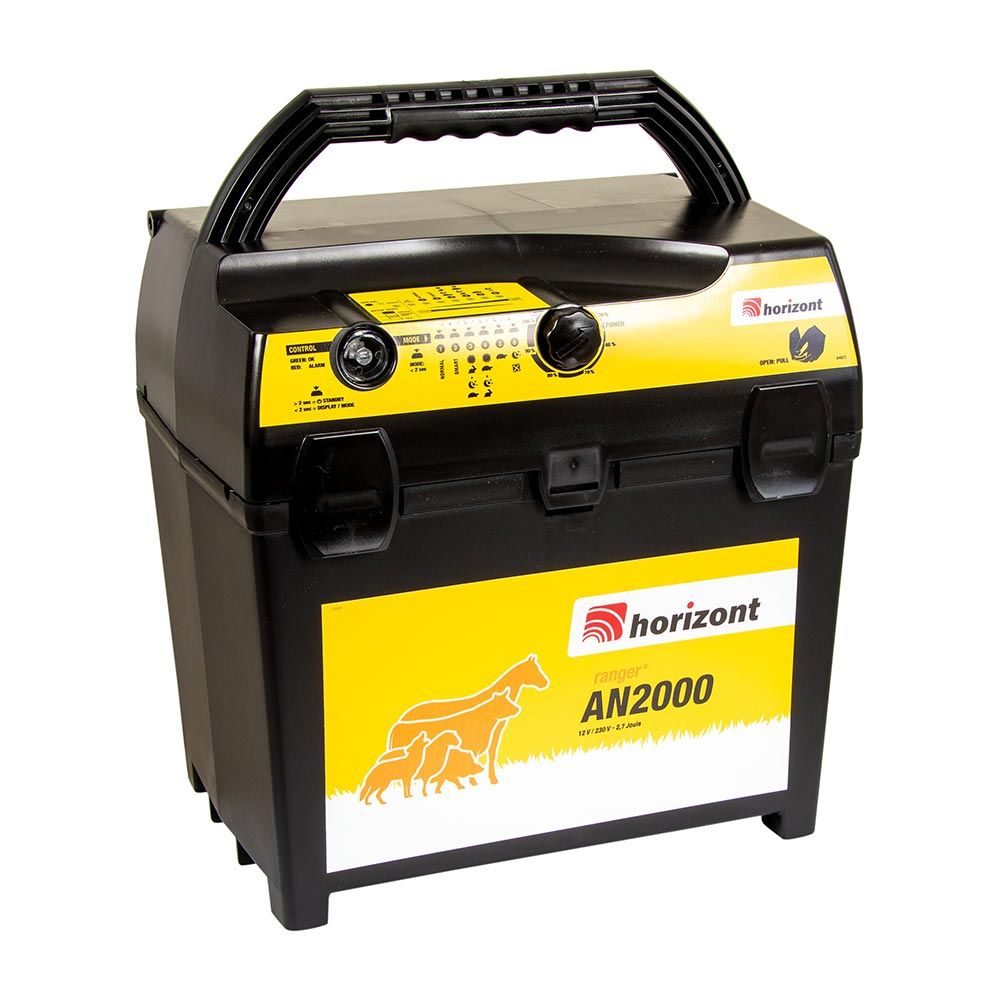

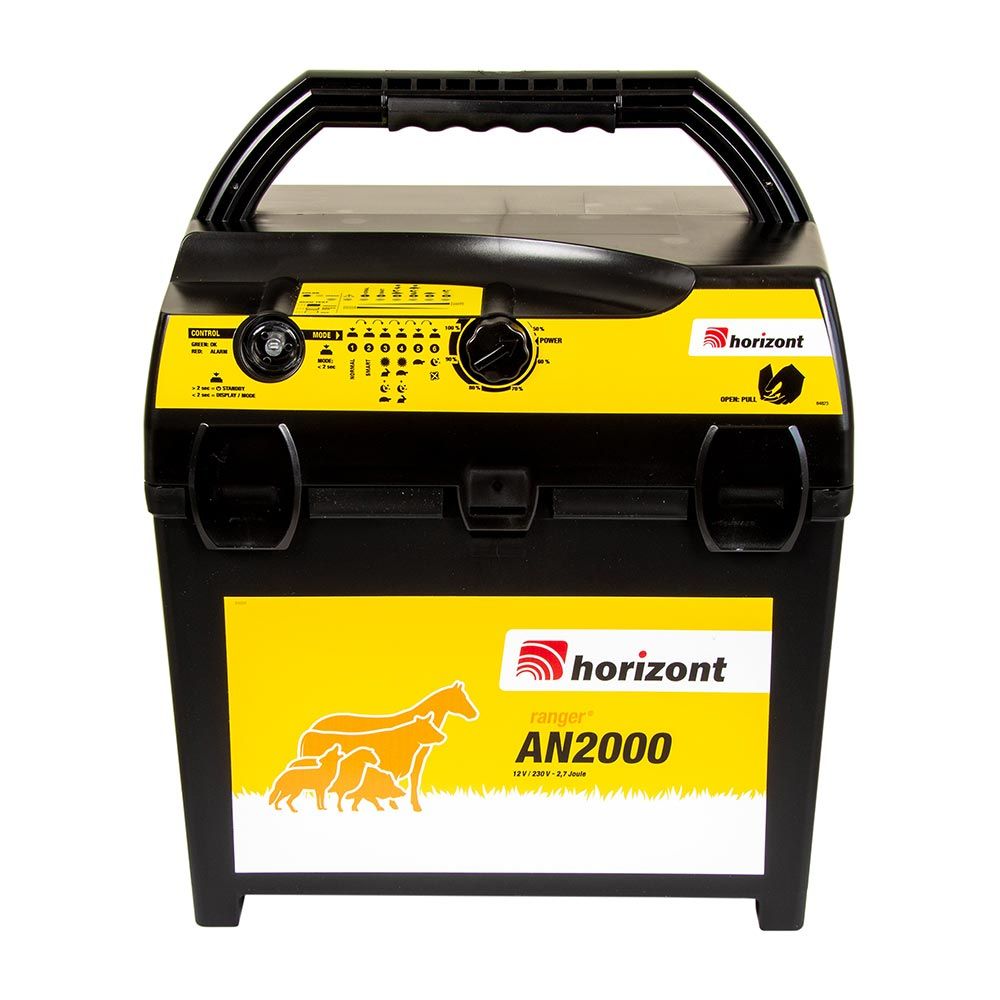

Dual energiser RANGER AN2000 HORIZONT
- Detailed description
The "2 in 1" energizer, ranger® AN2000 is designed as a 12 V battery unit. The battery connection cable is installed directly on the device, to be connected to any rechargeable battery. On the back of these devices has been added an additional connection for connecting an AC adapter (available as an accessory not included under the reference Ref. 9HOR47PSU0008FEU). This adapter allows the unit to operate on 230 V. Thus, if the device is connected with the adapter, and a 12 V battery, this "2 in 1" device can operate even in standby mode. If there is an interruption of the mains supply, the device continues to operate with the battery supply, and the solar panel if it is equipped with one.
The advantages:
- Comfortable with its GRIP handle.
- Fence tension display with 6 LEDs.
- Battery control display - 3 step display for detailed information
- Energy saving system.
- Solar charging controller with charging control display
- Earthing control.

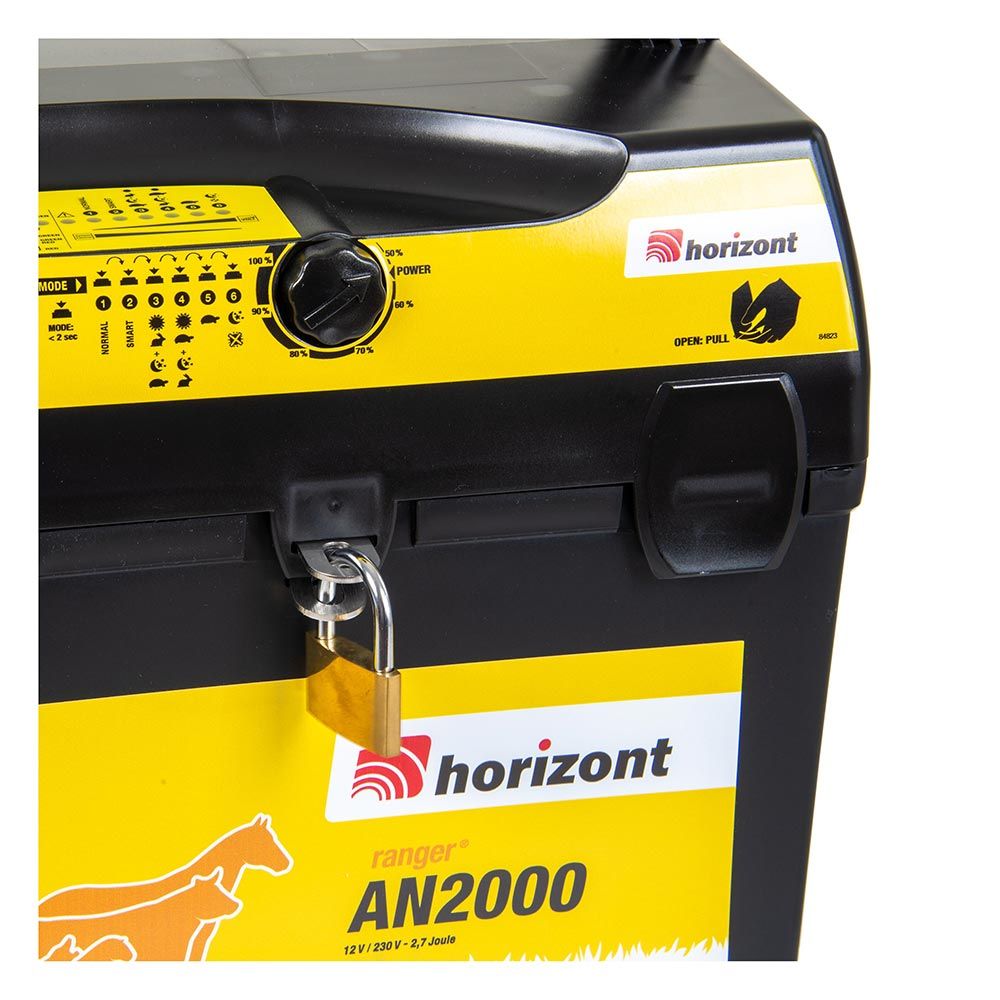

- The box can be closed with a padlock (not supplied).
- Output power adjustable with potentiometer from 50 - 100 %.
- Included with the energizer :
- Fence and earth connection cable with strengthened plastic cover
Technical data :
- Power :12V - 9V

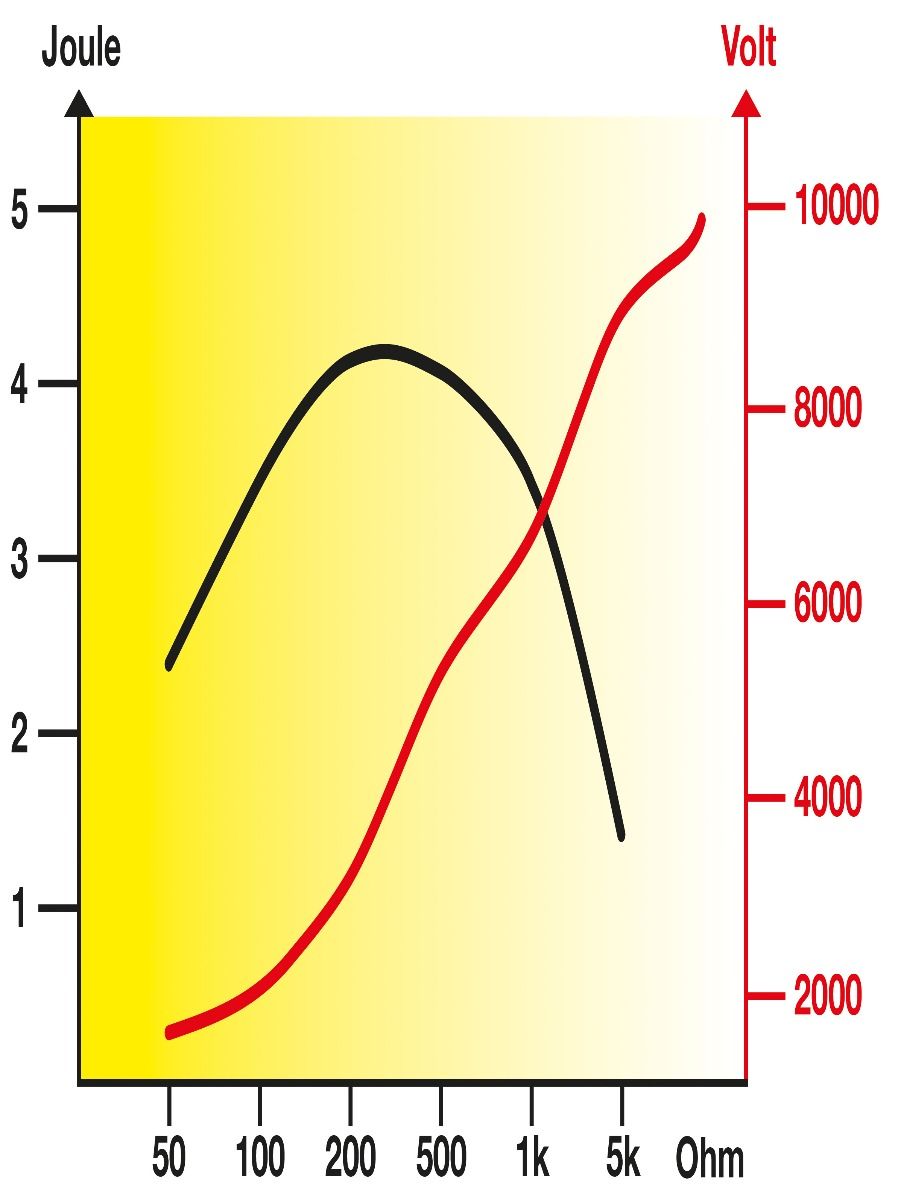

- Stored energy : 2.6 J / 12V - 0.7 J / 9V
- Delivered energy: 2 J/ 12V - 0.5 J / 9V

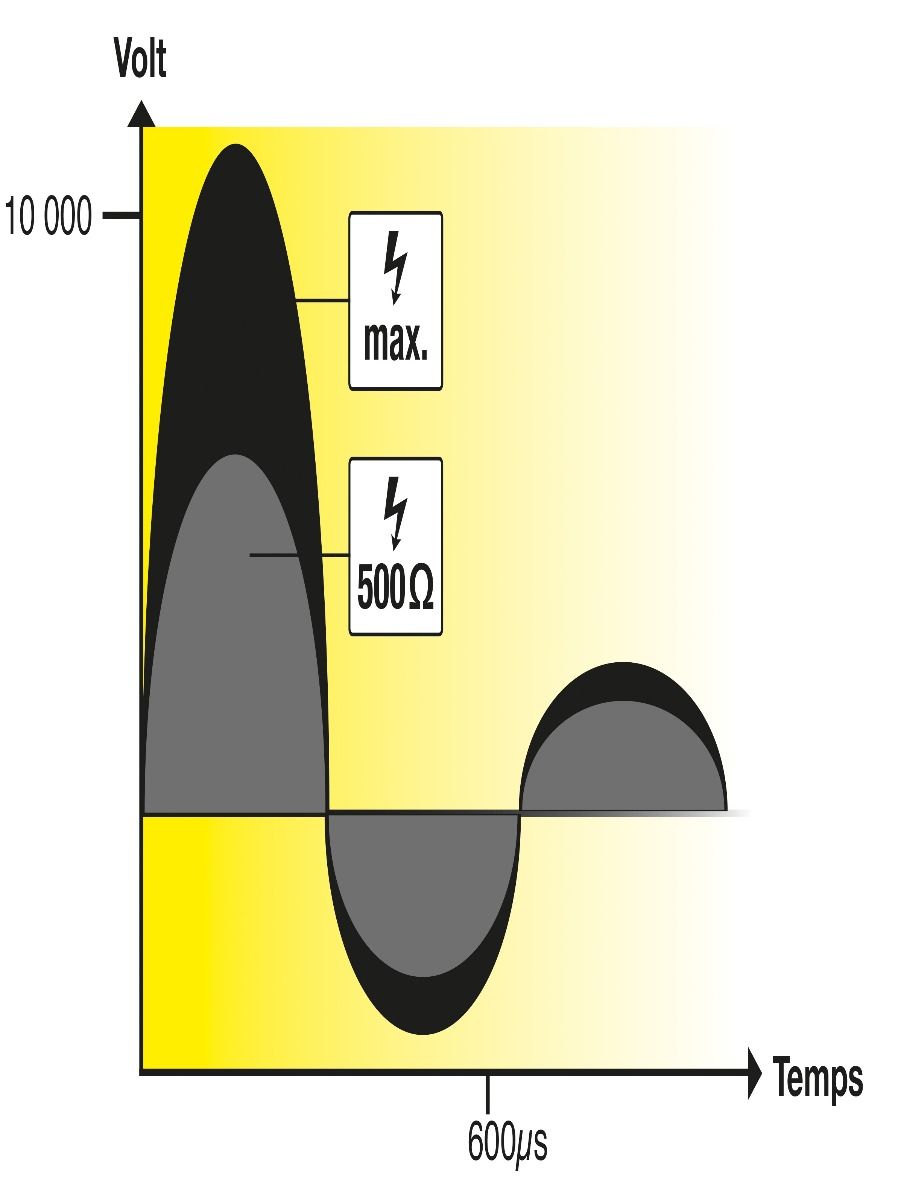

- Maximum fence voltage: 14,000 V / 12V - 5,600 V / 9V
- Voltage under 500 Ohms : 4 500V / 12V - 2 500V / 9V
- Consumption: 45-210 mA / 12V - 40-85mA / 9V
- Maximum distance from the fence, CEE standard: 50km / 12V - 14km / 9V
- Distance without vegetation: 15 km / 12V - 8km / 9V
- Distance with average vegetation: 4.5 km / 12V - 3 km / 9V
- Distance with strong vegetation: 1.7 km/ 12V - 2km/ 9V
- Number of electrifiable wires of the net: 10 x 50m
- Earth spikes: 2x1m / 12V - 2x1m / 9V
- Solar device : 20W / 12V - 20W / 9V
Recommendation solar module: 1*20 W
Recommended 12V battery: 85 Ah
This post has UV protection.
Guaranteed for 3 years.
NOT DELIVERED WITH 230V POWER SUPPLY ADAPTATOR ( sku 9HOR47PSU0010EU)
6 OPERATING MODES
- REGULAR : regular impulse sequence, the output power is adjustable with the potentiometer from 100% to 50%.
- SMART : Regular impulse sequence, APN*.
- DAY MODE: Regular impulse sequence during the day, slow impulse sequence at night, APN*.
- NIGHT MODE: Regular impulse sequence at night, slow impulse sequences during the day, APN*
- ECO MODE: Slow impulse sequence during the day and the night, APN*.
- NIGHT ONLY: Regular impulse sequence at night, no impulse during the day, PDA*.
*APN= Automatic power level: At potentiometer or at 50% preset (for units without potentiometer). APN leads to a progressive output power, depending on the fence situation.
This unit is equipped with the Horizont energy saving system:
- Less impact on the environment and reduced operating costs (see manual).
- With the use of a solar panel, battery recharging is less frequent.
