Solar meadow pump kit 23000 - 18M - 23M3/J LORENTZ
- Detailed description
This solar-powered submersible water pump is ideal for pumping water directly from any source (wells, rivers, ponds, etc.) without priming. It can be used for a variety of applications, including livestock watering, crop irrigation, drinking water, and more. This pump is powered by the sun, without batteries or any other energy source.
Features :
- Depth: up to 18 m
- Water volume per day: up to 23 m3/day
- Power: 0.15 kW
- Voltage: 16 to 55 DC
- Pump diameter: 100 mm
- Weight: 7.06 kg
- Brushless DC motor (no maintenance)
- High-density resin

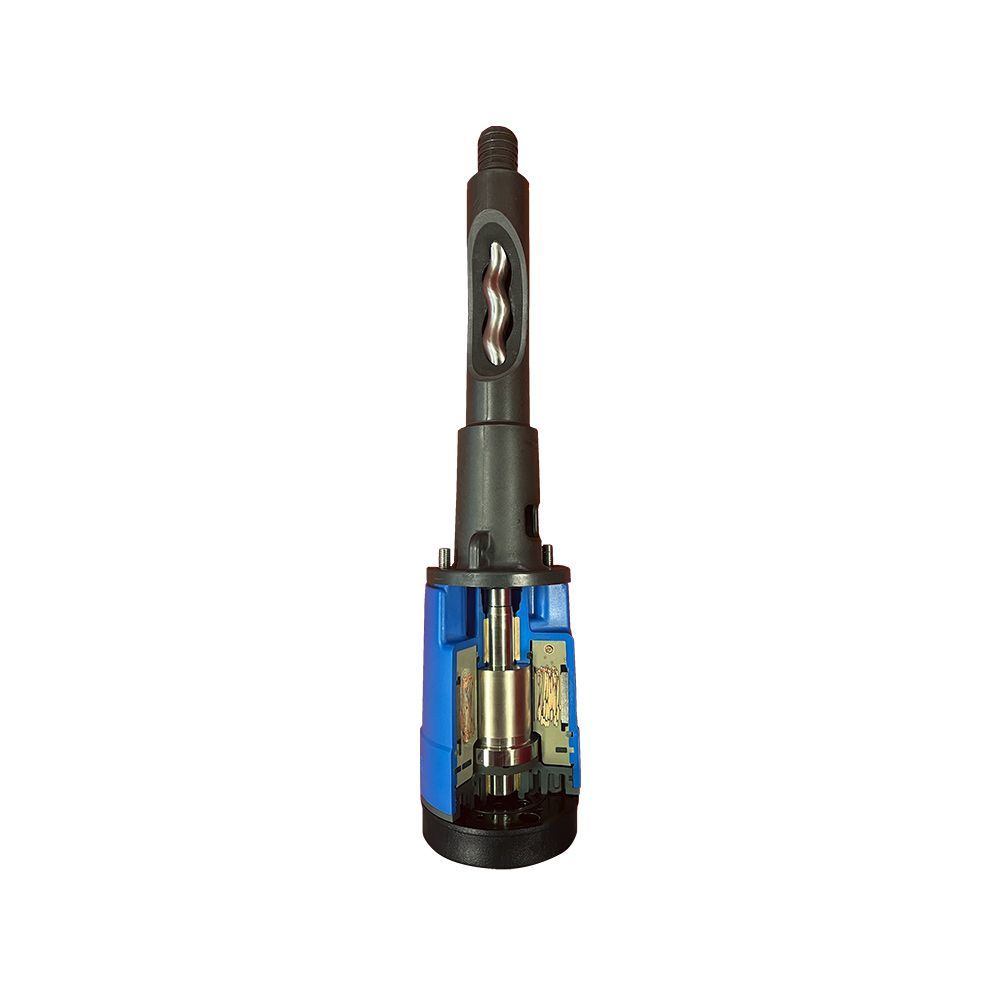

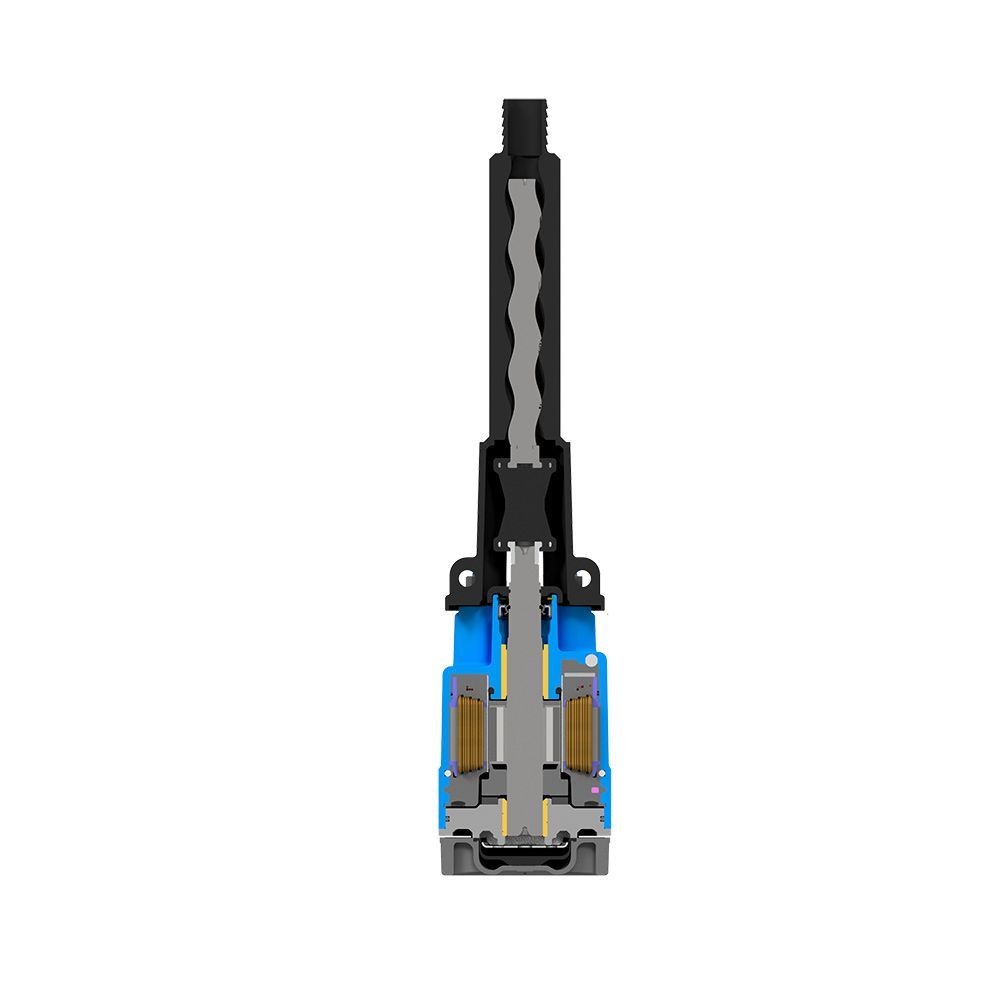

- Helical rotor (progressive cavity)
- 1-inch outlet (DN25)
- IP68 (housing): high resistance to weather and water

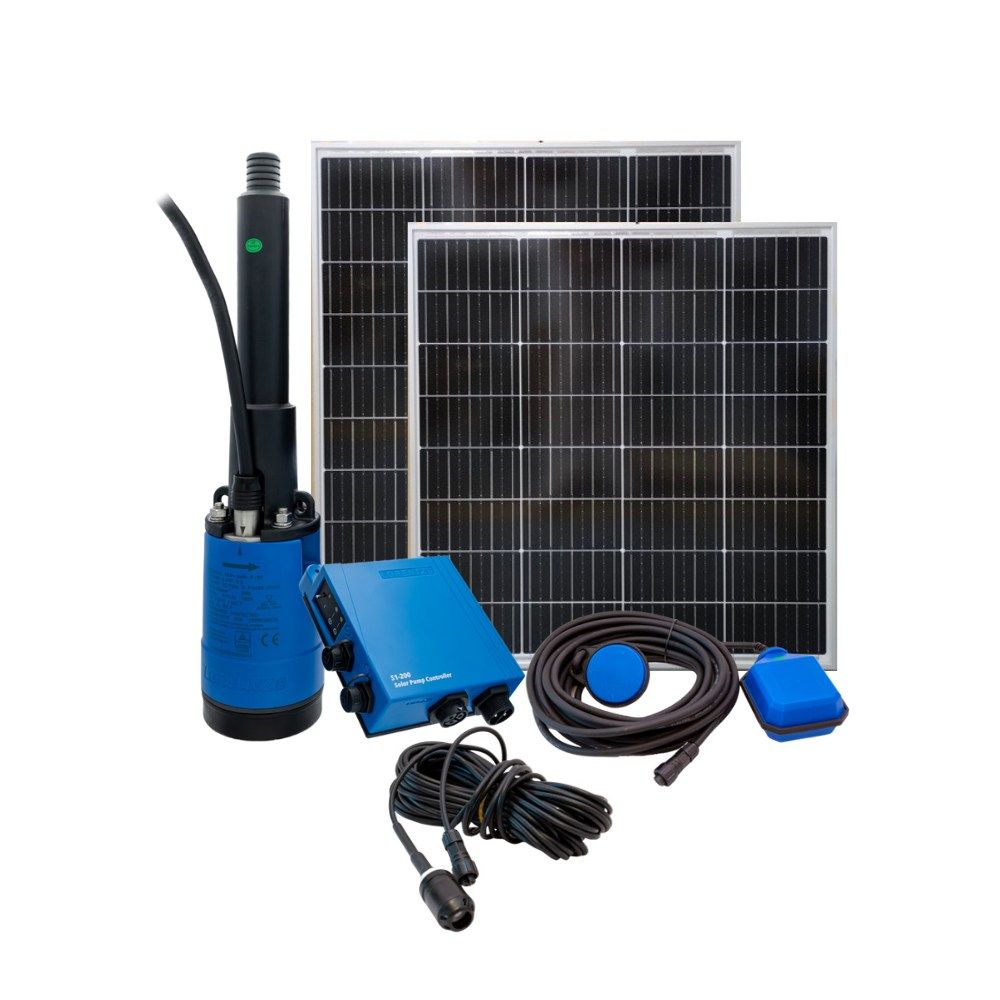

This pump includes :

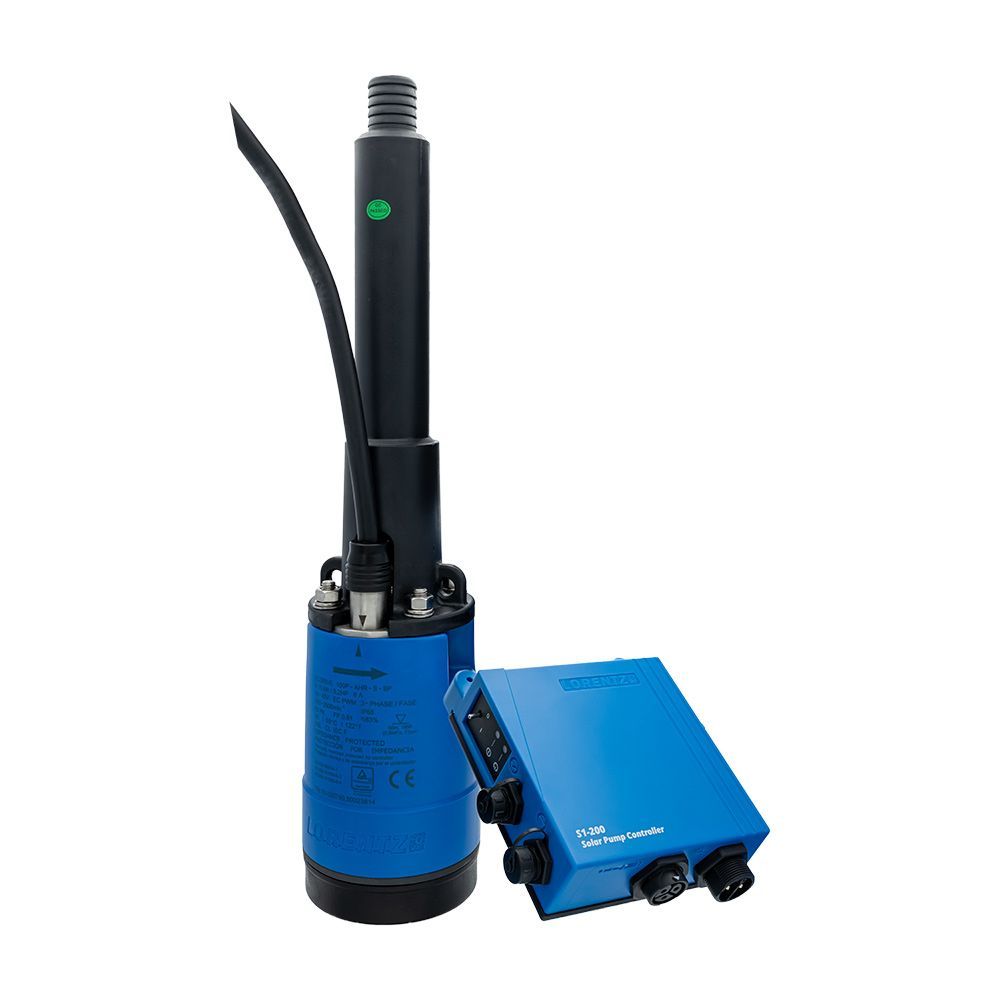

- A helical rotor pump with high-efficiency brushless DC motor
- A 15 m (50 ft) pre-wired motor cable to connect to the controller

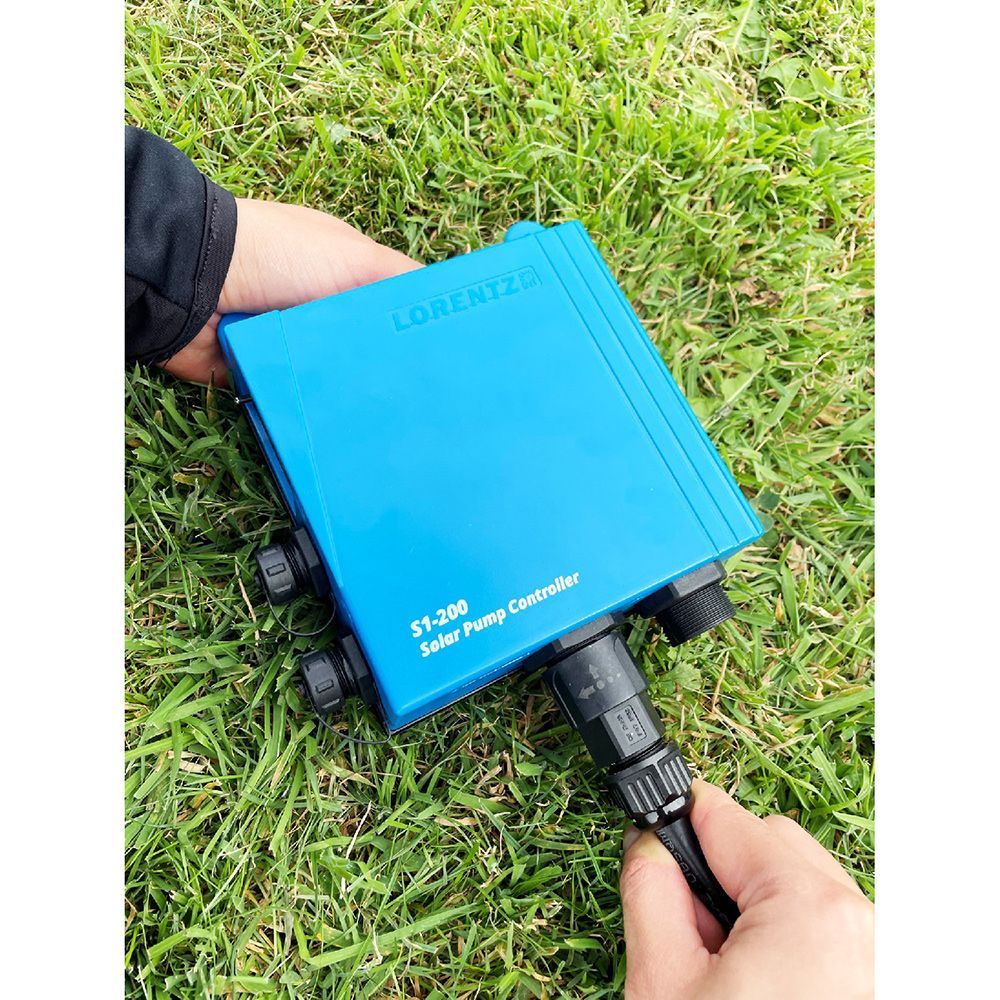

- An S1-200 mini controller with accessory inputs for dry-running protection and full tank switch
- A PV module adapter for use with any standard PV module (max. 55 V DC)
- 120W solar panel: Ref. 119150105 *2
- Floats: Ref. 119150140
Other additional accessories (not included) :
Pump extension: Ref. 119150141
Sensor extension: Ref. 119150142Online configurator :
Use the online configurator to help you install your solar pump.Small system, big performance :
S1-200 pump systems have market-leading efficiency, providing more water for your off-grid application using only solar energy. You can pump over 27,000 litres with a 200 W solar panel. The motor and pump are made from high-quality materials for
increased durability and reliability.Quick and easy automatic installation :
The S1-200 is a complete system contained in one box. Installation is very simple, just plug in the connectors and start pumping water. Even the pipe connections use standard 1-inch pipes, eliminating the need for special fittings.Portable and flexible in use :
The S1-200 is compact and lightweight, easy to carry under your arm. The system can be installed permanently or used
in applications where it is moved around every day. The submersible pump is self-priming and can be used in open water or in wells. Simply put the pump in place and start pumping.Application control and monitoring :
With LORENTZ's S-Connect app, you can control and monitor your pumping system. S-Connect offers advanced settings such as speed control, daily quantity targets and timers to automate pumping schedules. The app also monitors performance over time and helps you get product support. Data storage and Bluetooth™ connectivity.Please note:
The pump runs solely on solar energy – without a battery – and is therefore subject to weather conditions.Please do not hesitate to contact our teams for assistance with installing your meadow pumps on 03 88 90 73 93.
- Technical documentation
