Solar pump 40M - 7M3/J LORENTZ

Solar pump 40M - 7M3/J LORENTZ

Grouped product items
Ref	Gencode	Quantity
119150110	3700393977770	Quantity 1

Detailed description

This solar powered submersible water pump is ideal for pumping water directly from any source (wells, streams, ponds...). It can be used for various applications: watering livestock, irrigating crops, drinking water... This pump works thanks to the sun, without any battery, without any other energy source.

Features :

Depth: up to 40 m
Water volume per day: up to 7 m3/d
Power: 0.15kW
Voltage: from 16 to 55 DC
Pump diameter: 100 mm
Weight: 6.98 kg
Brushless DC motor (no maintenance)
High density resin
Helical rotor (progressive cavity)
1' inch outlet (DN25)
IP68 (housing): high resistance to weather and water

The S1-200 system includes :

helical rotor pump with high efficiency DC brushless motor
pre-attached 15 m (50 ft) motor cable to plug into the controller
S1-200 mini controller with accessory inputs for dry run protection and tank full switch
PV module adapter to use any standard PV module (max. 55 VDC)

Additional accessories required (not included) :

Solar panel 120W: ref.119150105 *2
Floats: ref. 119150140

Other complementary accessories (not included) :

Pump extension: ref.119150141
Probe extension: ref.119150142

Online Configurator :
Use the online configurator to help you install your peer pump.

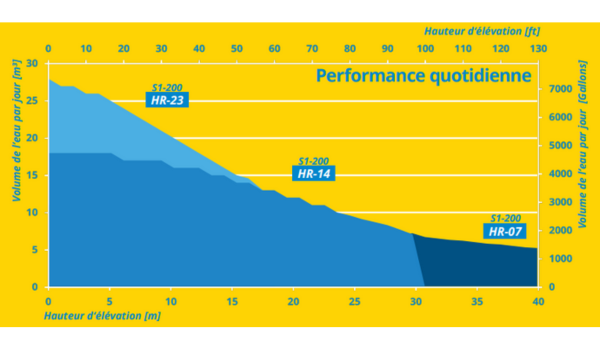

A small system with big performance :
S1-200 pump systems have market-leading efficiency, delivering more water for your off-grid application using only the power of the sun. You can pump more than 27,000 liters (7,100 US gal) per day with one 200 Wp PV module. Motor and pump end are made of high quality materials for durability and reliability.

Quick and easy self install :
S1-200 is a complete system in a box. Installation is very easy, just connect the plugs and start pumping water. Even the pipe connection fits standard 1“ hoses, so no special connections to contend with.

Portable and flexible in use :
S1-200 is compact and lightweight, ready to take away and carry under your arm. The system can be permanently
installed or used in applications where it is moved everyday. The submersible pump is selfpriming and can be used in
open water or wells. Just drop in the pump and start pumping.

App control & monitoring :
With the LORENTZ S-Connect App you can control and monitor your pump system. S-Connect gives you advanced
settings such as speed control, daily amount targets and timers to automate pumping schedules. The app also
monitors performance over time and assists with product support. Data storage and Bluetooth™ connectivity.
