Connection cable for LORENTZ solar panels
- Detailed description

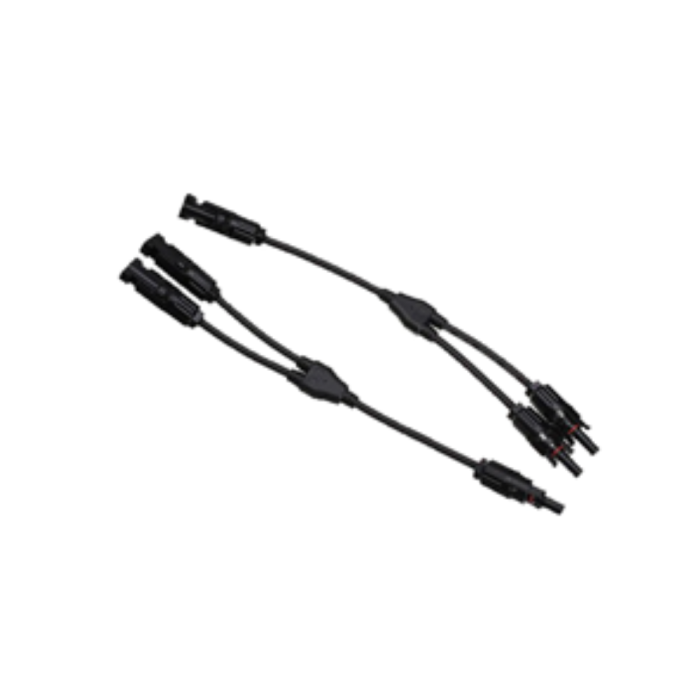

Connection cables for connecting 4 panels to the LORENTZ meadow pump system. These cables significantly increase the system's performance.
For example, the 119150120 under 20m of water increases from 7'000L/day to 13'000L/day (+85%) with 400W of panels instead of 200W. The 119150110 at 35m depth increases from 5,000L/d to 6,500L/d (+20%). The pump also comes on earlier in the day, allowing it to follow the sun's curve more closely.
Features:
- IP65
Recommendations for use:
- Take two 100W PV modules and connect the positive (male) cable of one PV module and connect it to the negative (female) cable of the other PV module (series connection).
- Take the other two 100 W PV modules and repeat the above procedure.
- Connect the two remaining positive (male) leads to a matching Y connector,
- Then connect the two remaining negative (female) wires to the other corresponding Y connector,
- Then take the remaining wires and connect them to the MC4 adapter included in the S1-200 system box (this is called a parallel connection),
- and finally, connect the remaining connector to the controller.
